BALTIM SOUTH WEST PROJECT

Scope of Work

Engineering, procurement, construction and on site commissioning

Project Description

-Fuel Gas Treatment Package

-Well Head Control Panel

-Power Generation Packages

-Electrical&Instrumental Module

-Survival Module

Technical Details

-Fuel gas treatment package for gas power generators feeding composed of HP gas separator, condensate pumps, coalescing filters, gas driers, electric heaters, instrumentation and accessories.

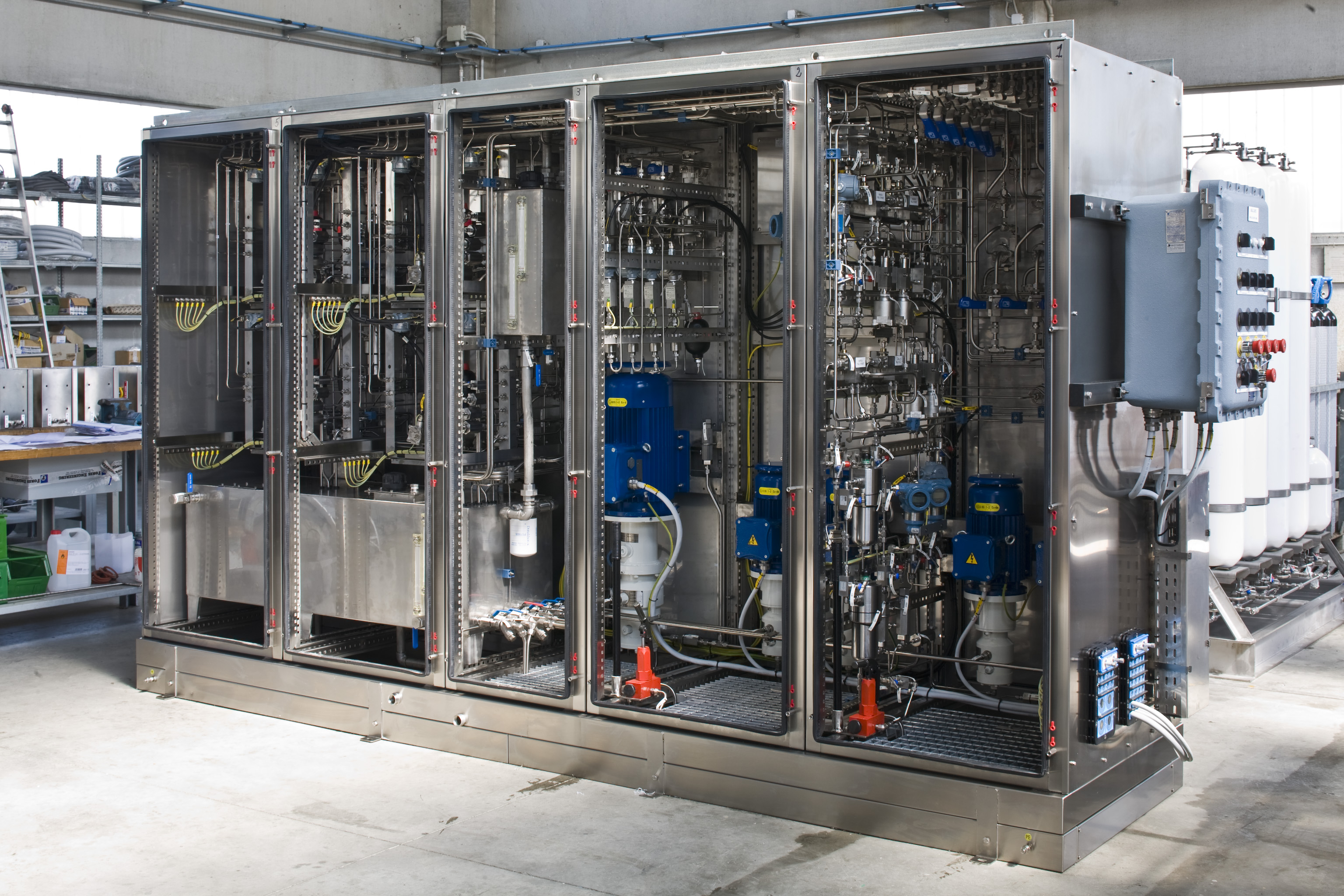

-N. 1 Wellhead Control Panel built of an AISI 316 SS enclosure (dim. L4450 x W1200 x H2400 mm) including Hydraulic Power Unit made with electrical pumps, hydraulic accumulators rack, N.6 drawers for wellhead control, ESD/PSD logics, fusible plugs network. Drawers for wellhead control are fully equipped, interchangeable and removable; spare space for N. 1 future drawer is foreseen.

-N. 3 shelters Solas A60 certified containing N. 2 gas power generators and N. 1 diesel power generator and their control panels. Each shelter is suitable for hazardous area installation (Atex) and equiped with ventilation system, lighting system, fire detection and fire fighting system.

– N. 2 shelters Solas A60 certified. N.1 control module containing all platform power and control panel (dim. L.11560 x W5400 x H4000 mm) and N.1 battery module (dim. L.3150 x W5400 x H3500 mm). Each shelter is suitable for hazardous area installation (Atex) and equipped with ventilation system, lighting system, fire detection and fire fighting system.

-N. 1 Survival Module for 8 people complete with small power & lighting system, Air Conditioning System, fire detection and fire fighting system. Survival package include also water treatment system and sanitary treatment package.
